Sampling Procedure
NOTE:
- En Core Sampler is a Single Use device. It cannot be cleaned and/or reused.
- En Core Sampler is designed to store soil. Do not use En Core Sampler to store solvent or free product!
- En Core Sampler must be used with En Core® T-Handle and/or En Core® Extrusion Tool exclusively. (These items are sold separately.)
Using The En Core® T-Handle
Before Taking Sample:
- Hold coring body and push plunger rod down until small o-ring rests against tabs. This will assure that plunger moves freely.
- Depress locking lever on En Core T-Handle. Place coring body, plunger end first, into open end of T-Handle, aligning the (2) slots on the coring body with the (2) locking pins in the T-Handle. Twist coring body clockwise to lock pins in slots. Check to ensure Sampler is locked in place. Sampler is ready for use.
Taking Sample:
- Turn T-Handle with T-up and coring body down. This positions plunger bottom flush with bottom of coring body (ensure that plunger bottom is in position). Using T-Handle, push Sampler into soil until coring body is completely full. When full, small o-ring will be centered in T-Handle viewing hole. Remove Sampler from soil. Wipe excess soil from coring body exterior.

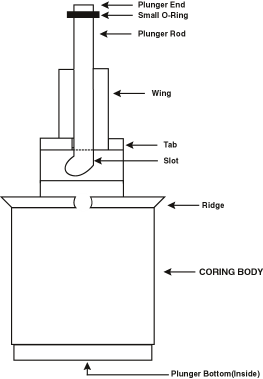

- Cap coring body while it is still on T-handle. Push cap over flat area of ridge. Push and twist cap to lock arm in place. Cap must be seated to seal sampler (see diagram below).
